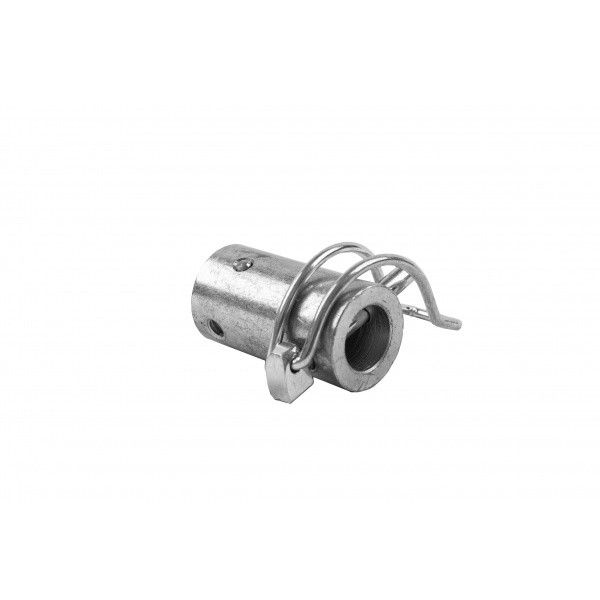

Roaster Motor Adapter, Shaft 16mm No-3
13,85 €
40040
Stainless steel drive sleeve with locking pin for attaching the grill needle to the motor. Hole for the motor shaft dia. 10 mm, hole diameter for the needle 16 mm. Gear coupling for the motor and spit. Grill needle drive to the motor.
Subscribe to when in stock again:
You have successfully subscribed to this product
Grill needle shaft 16 mm / 10 mm No-3
The side locking pin prevents the needle from rotating and ensures stable operation.
Parameters:
Material: stainless steel
Inner diameter on the motor side: 10 mm
Outer diameter on the motor side: 27 mm
Inner diameter on the spit side: 16 mm
Outer diameter on the spit side: 27 mm
Length of the driver: 50 mm
Hole for the pin for securing to the motor: 11 mm (edge - center of the hole)
Hole for the pin with a cotter pin for securing to the spit: 10 mm (edge - center of hole)
Thread for screw to secure to the spit: 8 mm (edge - center of hole)
Weight: 151 g
Package contents:
1 pc. No-3 driver
1 pc. locking pin
1 pc. locking pin with cotter pin
This carabiner is compatible with our grill motor ID 40038 Grill motor lamb/sele/breast up to 100 kg 30W.
