Reverse Compound Crossbow Viper 230 lbs

Viper 230 lbs Reverse Compound Crossbow

Powerful reverse compound crossbow with a draw weight of 230 lbs and an arrow speed of up to 430 fps (approx. 131 m/s). The modern reverse-limb design and compound system combine high performance with compact dimensions. The crossbow is suitable for sport and target shooting and, subject to applicable legislation, also for hunting.

The main characteristic feature of this crossbow is its reverse limb design. Unlike conventional compound crossbows, the limbs are oriented in the opposite direction and the cams are positioned closer to the crossbow body. The result is a design that maintains compact overall dimensions while retaining high performance.

The crossbow is powered by a compound system that makes efficient use of the high 230 lbs draw weight. The draw length is 16.7", approximately 42.4 cm. The crossbow reaches an arrow speed of up to 430 fps (approx. 131 m/s).
The package includes a cocking aid that significantly facilitates cocking the crossbow and provides more comfortable and safer handling during the cocking process. The package also includes wax to help protect the string and keep it in good condition.

The crossbow is equipped with an ergonomically shaped grip with a textured surface that provides a firm and comfortable hold. The length-adjustable stock allows the length of the crossbow to be adapted to the individual needs of the shooter and contributes to comfortable and stable aiming.

The trigger is located inside a trigger guard, and the crossbow is equipped with an automatic safety and an anti-dry-fire safety. This prevents the crossbow from being fired without a loaded arrow.

The upper part of the crossbow features a 22 mm mounting rail for attaching the included scope. The lower 22 mm mounting rail is used to attach the included foregrip, whose position can be adjusted according to the shooter´s needs. The rail is also long enough for mounting additional compatible accessories, such as a bipod or flashlight, which are not included in the package.
The front part of the construction is equipped with a stirrup that serves as a support when cocking and makes handling the crossbow easier. The construction also includes string stops.

The crossbow is supplied with a 4x32 scope. It offers four-times magnification and a 32 mm objective lens. It allows more comfortable aiming at the target. The scope is attached using the included two-piece mount for a 22 mm mounting rail. The optics are equipped with protective covers.

The set includes 3 carbon arrows with a diameter of 9 mm and a length of 53 cm. Carbon arrows are lightweight and strong and provide suitable basic ammunition for this powerful crossbow. For this crossbow, we recommend using arrows with a diameter of 9 mm and a minimum length of 20" (approx. 50 cm). The arrow must be equipped with a Half Moon nock. Arrows with a flat nock are not suitable for this crossbow. Suitable replacement arrows can be found in our range, for example under ID 20058.

Specifications:
Draw weight: 230 lbs / approx. 104 kg
Arrow speed: 430 fps (approx. 131 m/s)
Approximate shooting distance: 90–120 m
(this figure is for guidance only and may vary depending on the ammunition used and shooting conditions)
Draw length: 42.4 cm (16.7")
Distance between cam axles: 34 cm (13.4")
Crossbow length: 87.4–93.5 cm (34.4–36.8")
Weight: 9.2 lbs / approx. 4.17 kg
Upper mounting rail: 22 mm / length 23 cm
Lower mounting rail: 22 mm / length 29 cm
Automatic safety: yes
Anti-dry-fire safety: yes
Suitable ammunition: 9 mm arrows with a minimum length of 20"
Ability to shoot steel balls: no

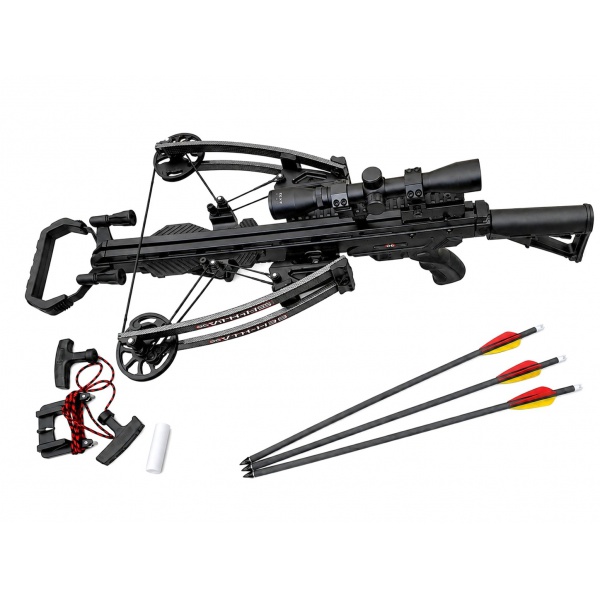

Package contents:
1x Viper Reverse Compound Crossbow
1x Stirrup
1x String stop
1x Foregrip
1x 4x32 Scope
1x Two-piece 22 mm scope mount
3x Carbon arrow 9 mm, length 53 cm with screw-in interchangeable point
1x Cocking aid
1x String wax
Mounting tools
Assembly and operating instructions

For persons over 18 years of age who have full legal capacity.
Read the operating instructions carefully before use and follow the stated safety instructions.
