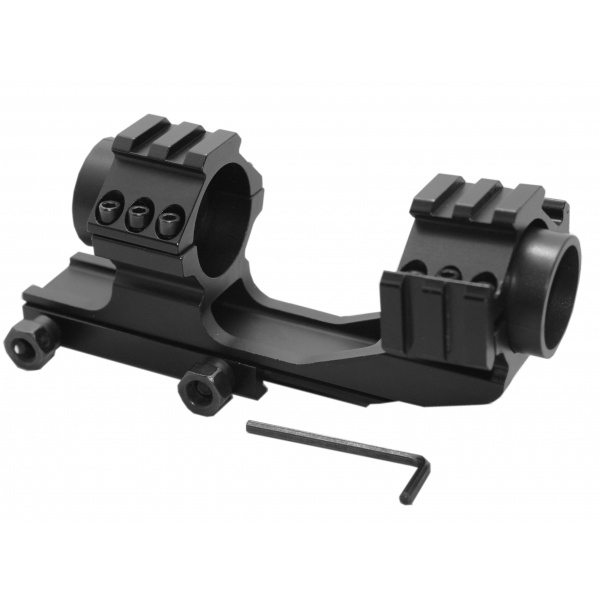

Forward Offset Scope Mount for 22mm/25,4 and 30mm

One-piece mount for a 22mm dovetail with a universal tube diameter for 25.4mm and 30mm, featuring top and lateral rails

The mount ensures a stable attachment of an optical sight, scope, flashlight, etc., with a forward offsetting of 6,5 cm. The mount is secured to the 22mm rail.
The internal diameter of the ring for inserting the scope is 30mm. The mount is equipped with plastic split rings that can reduce the ring diameter to 25.4mm. The ring is secured with six hex screws from each side.

The mount features top and side RIS rails with a width of 22mm, allowing the attachment of a flashlight, laser, etc.

Parameters:

Overall length: 135 mm

Rail Length: 70 cm

Internal diameter of the ring, including split ring: 25,4 mm

Internal diameter of the ring without split ring: 30 mm

Base height (saddle height): 20  mm

Overall height (including mount): 63 mm

Mount width: 56 mm

Length of Offsetting: 65 mm

Mount Material: duralumin

Package includes:

1 x one-piece mount

2 x two-piece split ring for reducing the ring diameter

1 x Allen key
