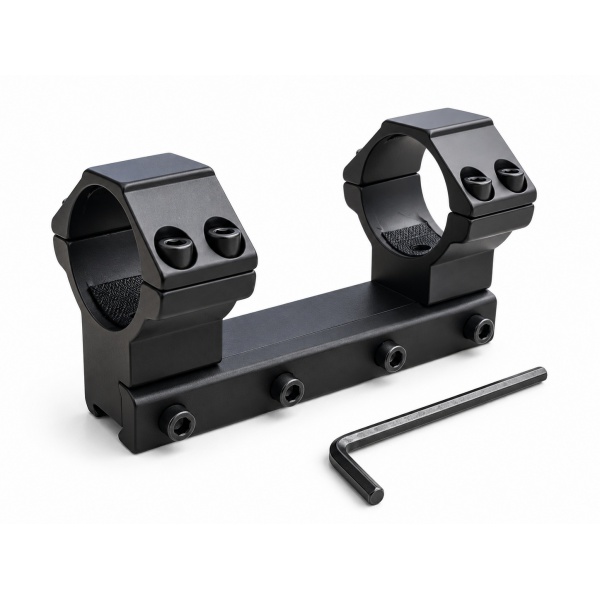

One-Piece Scope Mount for 11mm/30 mm High-Profile

One-piece Scope Mount 30 mm Diameter for an 11mm Dovetail

This mount is designed for securing an optical sight, scope, or flashlight to a firearm.
The mount is fastened using a screw onto an 11 mm rail.
The inner diameter of the ring where the scope tube is inserted is 30 mm.
The ring is tightened using 4 hex screws.
The mount is equipped with a securing pin to anchor it to the weapon, preventing any movement during firing. The securing pin is useful, for example, with firearms that have a higher recoil.

Parameters:

Mount onto rail: 11 mm

Overall Length: 100 mm

Rail Length: 100 mm

Inner Ring diameter: 30 mm

Ring Thickness: 20 mm

Base Height (saddle height): 21 mm

Overall Height (including mount): 56 mm

Mount Width: 45 mm

Material: Duralumin

Package includes:

1x One-Piece Scope Mount 11mm/30mm

1x Allen Key
